UTrust Mould -Professional compression mould and tooling manufactuer
3 Years
| Ask Lasest Price | |
| Brand Name : | UTrust Mould |
| Model Number : | DS-01 |
| Certification : | CE |
| Payment Terms : | T/T |
| Supply Ability : | 120-150 Sets Molds |
| Delivery Time : | 35-45days |

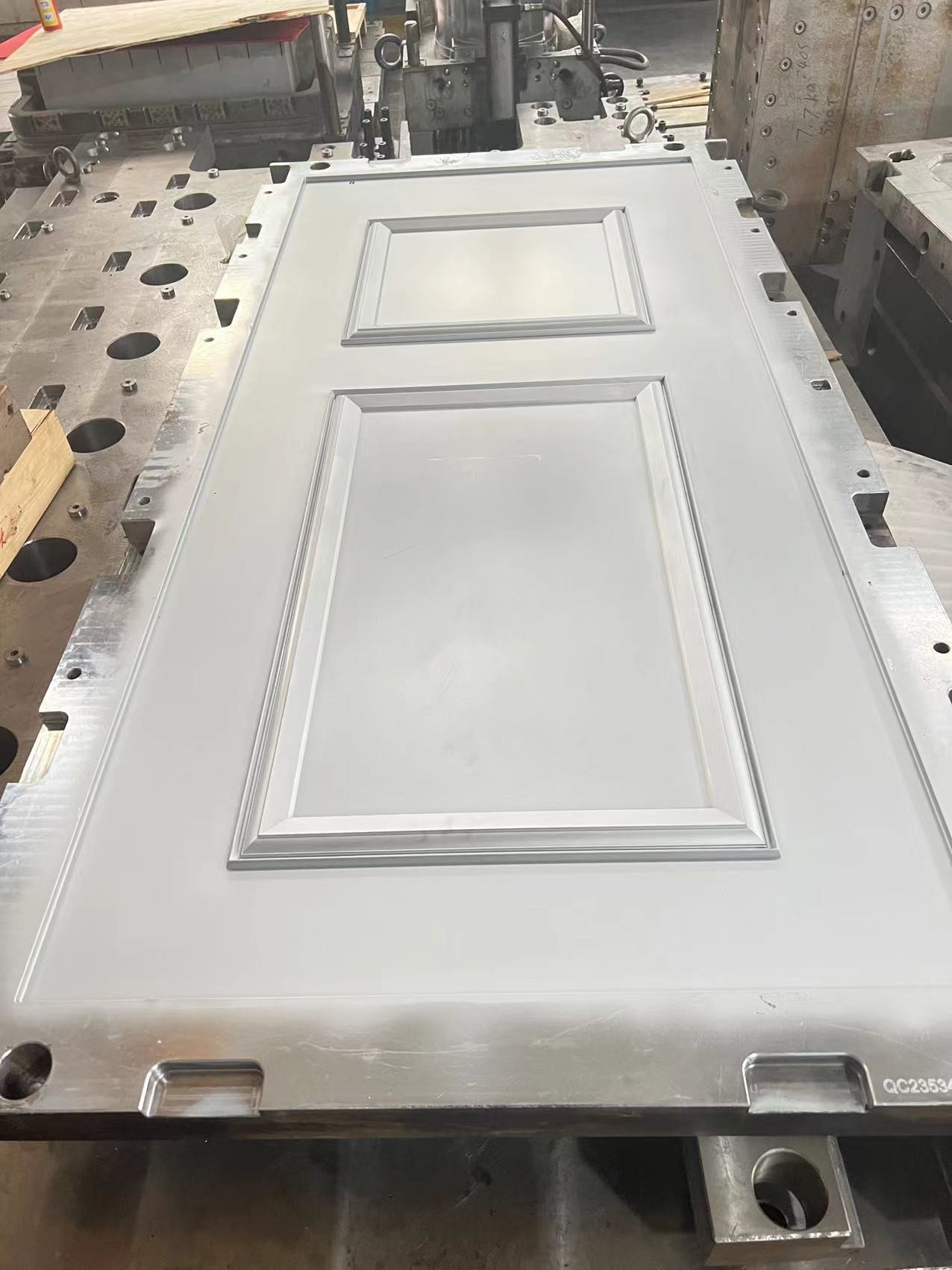

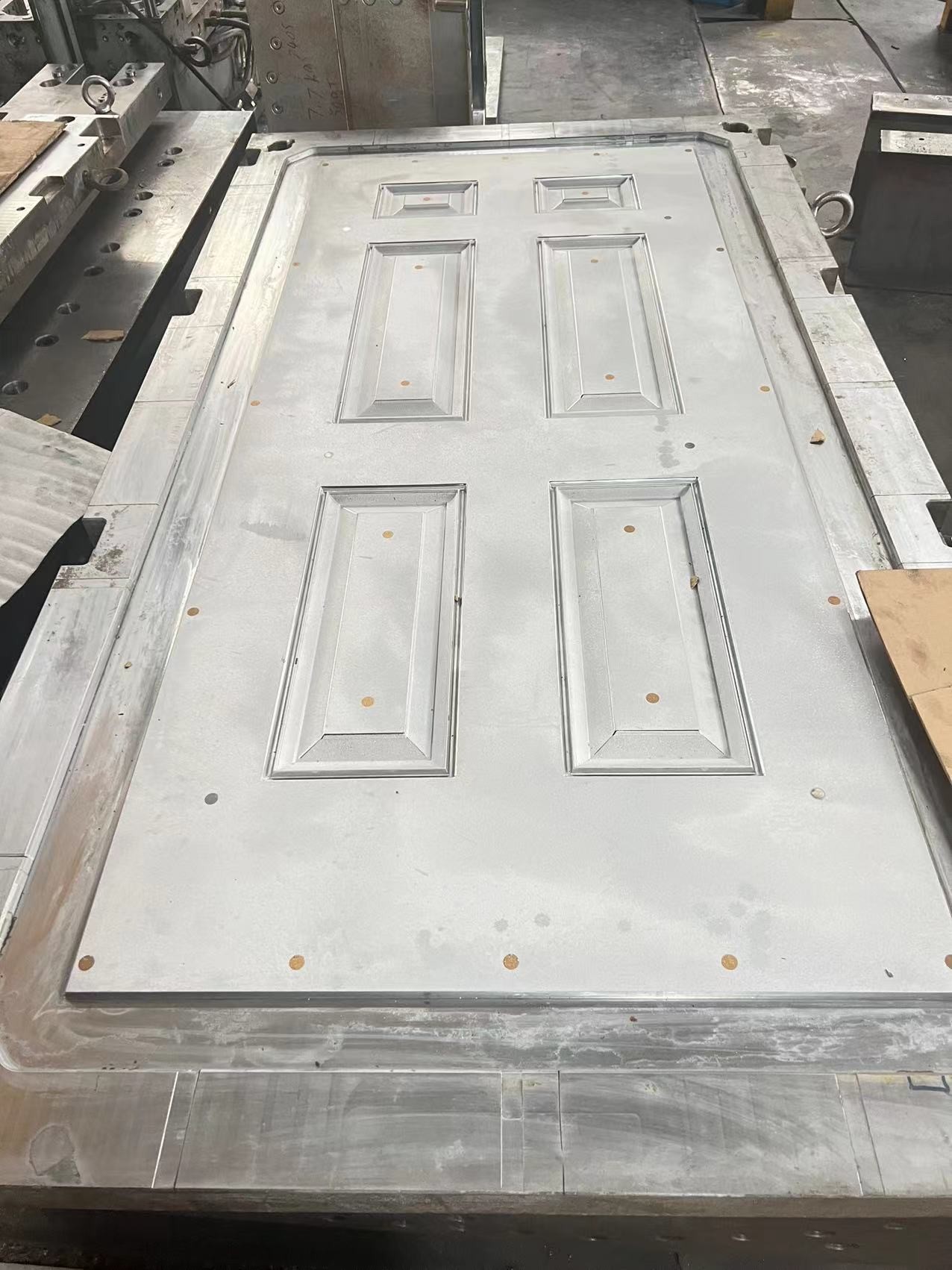

The following is about SMC Door Skin Mould related Doorskin mould.I hope to help you better understand SMC Door Skin Mould.
SMC is sheet mould compound
SMC is a mixture of polymer resin, insert fillers, fiber reinforcement, catalyst, pigments, stabilizers, release agents, and thickeners. Manufacturing of SMC is a continuous in-line process.
This process produces high strength, complex parts in a wide variety of sizes. Matched metal dies are mounted in a hydraulic molding press. The material charge is manually or robotically placed in the mold; the heated mold halves are closed, and up to 2000 psi of pressure is applied. Cycle time ranges from one to five minutes, depending on part size and thickness. Features such as ribs, bosses and inserts can be molded in.
Compression molded fiberglass parts are characterized by net size and shape, two excellent finished surfaces, and outstanding parts-to-part repeatability. Trimming and finishing costs are minimal.
In-mold coatings and vacuum system in the tool are available to improve surface paint ability, eliminating the need for primer.
Color compounds can be customized.
The advantage of SMC molding parts is as follows:
1. Good dimensional stability, including excellent thermal resisitance.
2. Pigmentable for molded-in color, best appearance with mold texture.
3. Excellent property retention in cold and hot environments.
4. Suitable for outdoor use in applications involving UV exposure and water.
We usually sell
SMC meter box mold
SMC bumper mold
SMC lamp mold
FRP manhole cover mold
SMC meter box mold
SMC bumper mold
SMC lamp mold
plastic trash mold
plastic tray mold
SMC door skin mold
plastic household mold
BMC auto parts mould
SMC BMC Ceiling Mould
Information for your reference:
| Name | SMC Door Skin mould |
| Mould materials | 45#,50#,P20,H13,SKD61, etc. |
| Cavity | Single/Multi |
| Runner | / |
| Design software | UG,CAD,PORE,etc |
| Mould life | 100,000-1,000,000shots |
| Delivery time | 35-45 days |
| Specification | According to client's requirements |
Steps:
| 1. R&D | We support cutomer R&D. Design or improve design for you. | ||||||||||||||||||||||||||||||||||||||||||
| 2. Quotation | Within 24 hours | ||||||||||||||||||||||||||||||||||||||||||
| 3. Order | Use your own design or use ours. We will send schedule to you as soon as we receive your confirmation. | ||||||||||||||||||||||||||||||||||||||||||
| 4. Mould | All parts will be produced according to the design. Build the mould according to your request, send mould design to you for approval before processing, send sample to you before product manufacturing. | ||||||||||||||||||||||||||||||||||||||||||
| 5. Sample shoot | If you are not satisfied with the first sample, we will modify the mould until it meets your requests. | ||||||||||||||||||||||||||||||||||||||||||
| 6. Products in store | If your quantity is beyond our storage, we'll provide lead time. | ||||||||||||||||||||||||||||||||||||||||||
| 7. Delivery | By sea or by air, according to your requirements. Information for your reference:
